We Manufacture and Supply Couplings. Coupling introduces mechanical flexibility hence it adjusts misalignment in the shafts and as a result, coupling can prevent uneven wear, vibration. We understand that as we have been working with those.

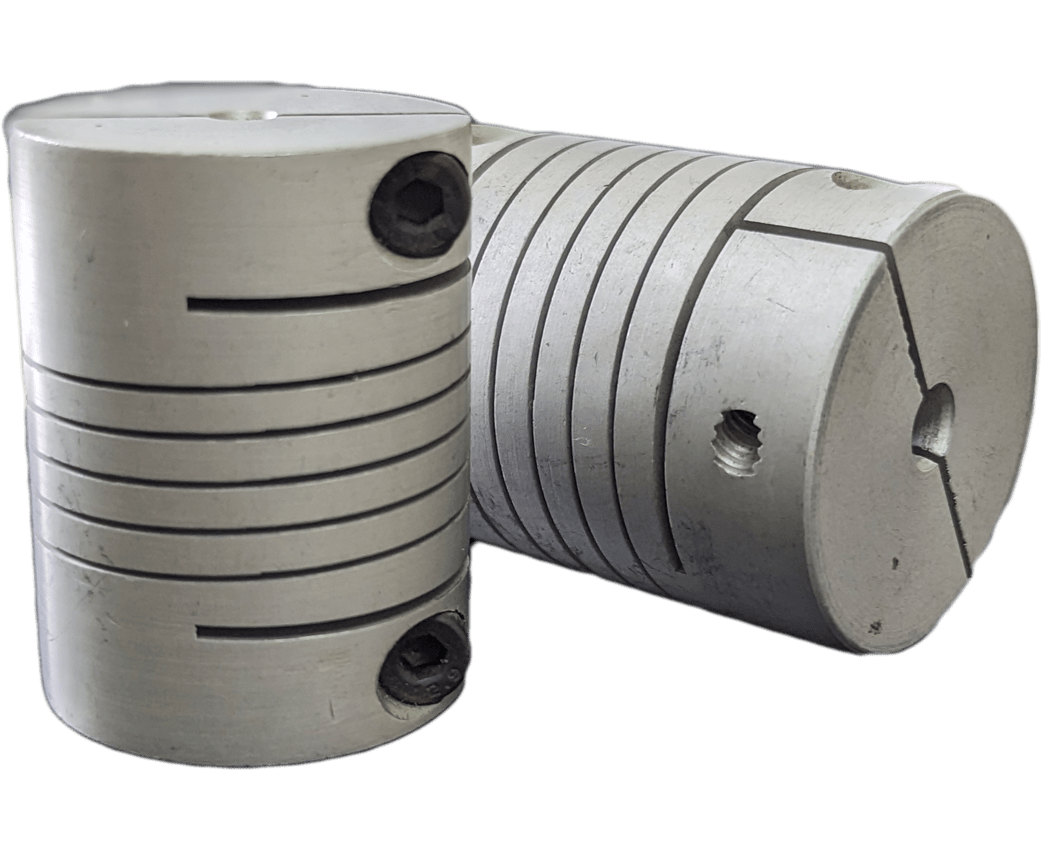

Flexible Beam Coupling
Info
BS-type and BC-type Aluminum Beam Couplings. This type of couplings are single-piece coupling with a zero backlash error and low windup. Beam Coupling is designed to transfer torque between shafts via flexible shafts. And are useful in situations when there are a wide variety of axial motions, angular misalignments and parallel misalignments that can be accommodated by this general purpose multi-beam coupling. Beam Couplings are used in servo motors, encoder's stepper, power transmission application.
| Material Composition: | Aluminum | Torque: | 1.5~7 N.M. |
|---|---|---|---|
| Error of Angularity： | 0~5° | Parallelism: | 0.127mm |

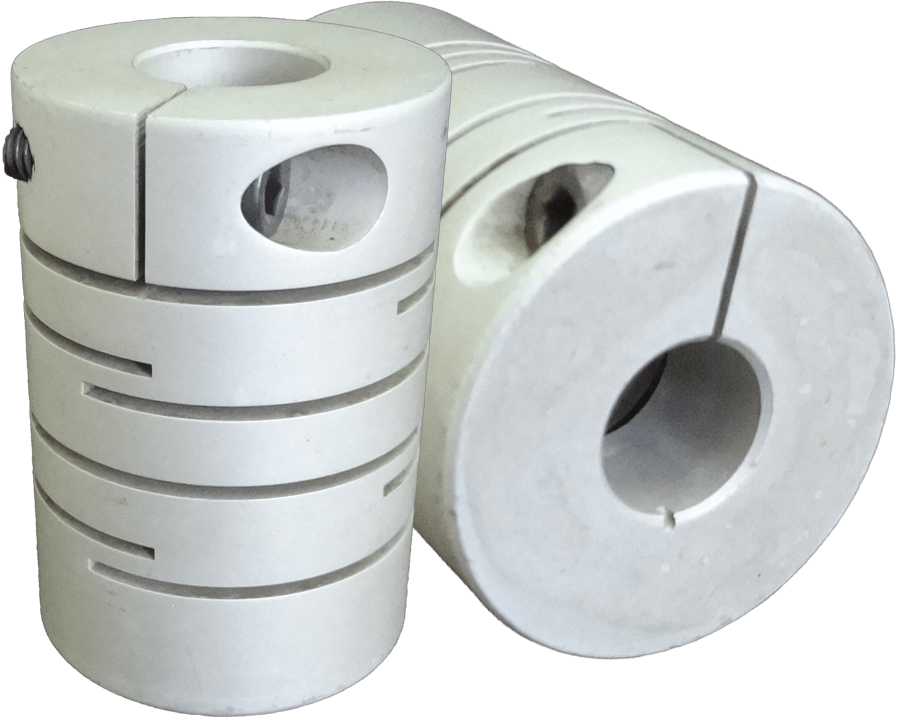

Slit-type Flexible Couplings
Info
HST-Type. It is a one-piece coupling. They are used in Industry for their Compensation of axial, radial, angular misalignment, for simple and fast assembly. They have a High-torsional stiffness and response. Slit-type Flexible Couplings at Balaji Engineering Works are available in Stainless steel or aluminum alloy material.
| Material Composition: | Aluminum | Torque: | 2~18 N.M. |
|---|---|---|---|
| Error of Angularity： | 0~2° | Parallelism: | 0.20mm |

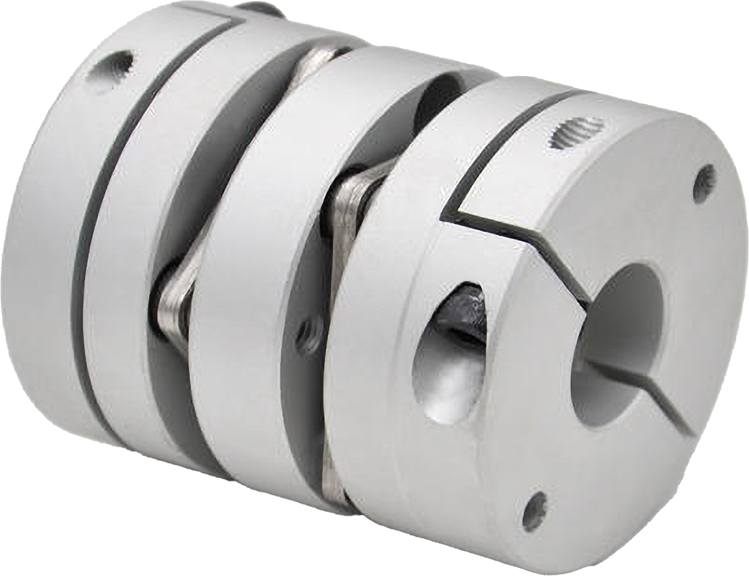

Buffer-type Flexible Couplings
Info
BFCW-Type & BFC-Type It contains multiple disc stacked together in between which acts as suspensions and adjusts misalignment in between shafts by deflection of a thin metal disc. Compared to other couplings in its class, this Coupling is lighter and possesses greater strength. Using Grub Screws, couplings can be tightened rigidly by using Allen Keys to securely hold shafts of motors and peripheral devices. Buffer-type Flexible Couplings at Balaji Engineering Works are available in aluminum alloy material.
| Material Composition: | Aluminum | Torque: | 1.5~80 N.M. |
|---|---|---|---|
| Error of Angularity: | 0~2° | Parallelism: | 0.20mm |
